In concrete production, mixture temperature is one of the most critical parameters affecting strength, durability, and long-term structural performance. Especially in hot climates and large-scale infrastructure projects such as dams, bridges, tunnels, and high-rise foundations, controlling concrete temperature is essential.
One of the most strategic components of modern concrete cooling solutions is the ice weighing system.
Ice is used to replace a portion of mixing water, effectively reducing the initial concrete temperature while balancing the heat generated during cement hydration. However, the success of this method depends entirely on the precise and repeatable dosing of ice. This is where ice weighing systems play a vital role in ensuring production consistency and quality assurance.
Importance of Ice in Concrete Cooling
During cement hydration, heat is released, increasing the internal temperature of concrete. If this heat is not properly controlled, it may result in:
-
Thermal cracking
-
Reduced compressive strength
-
Increased internal stresses
-
Long-term durability issues
In hot regions and mass concrete applications, ice can reduce concrete temperature by 5°C to 15°C. However, achieving optimal results requires exact dosing for each batch. Manual estimation methods can lead to quality fluctuations, increased costs, and project delays.
What Are Ice Weighing Systems?

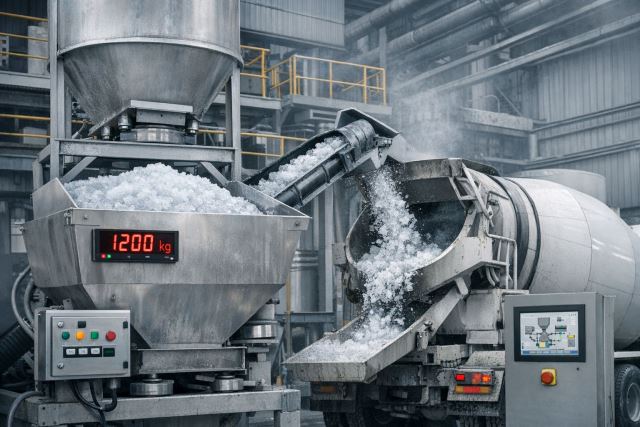

Ice weighing systems are integrated equipment designed to automatically measure and dose flake ice, cube ice, or crushed ice according to concrete mix recipes before transferring it into the mixer.
These systems typically consist of:
-
High-precision load cells
-
Weighing hopper or bin
-
PLC-based automation control panel
-
Screw conveyor or belt transfer system
-
Sensors and safety components
Load cells ensure accurate measurement down to highly sensitive weight tolerances. The PLC automation calculates the required ice amount based on the predefined mix design and automatically stops feeding once the target weight is reached.
Working Principle
The operational process of an ice weighing system includes:
-
Recipe Definition: Target temperature and ice dosage are defined within the batching plant automation system.
-
Ice Feeding: Ice is directed from the production unit or storage silo into the weighing hopper.
-
Precision Weighing: Real-time weight monitoring is performed via load cells. Feeding stops automatically at the target value.
-
Transfer to Mixer: The weighed ice is conveyed into the mixer using screw or belt systems.
-
Data Recording: All dosing data is digitally recorded and integrated into quality control systems.
This automated workflow minimizes human error, ensures consistent batch quality, and enhances process reliability.
Strategic Advantages in Large-Scale Projects
Ice weighing systems are not merely cooling accessories; they function as quality assurance and process optimization tools.
Key benefits include:
-
High dosing accuracy
-
Repeatable production quality
-
Water and energy efficiency
-
Full automation integration
-
Real-time monitoring and reporting
-
Reduced operational risks
In mega construction projects, even a 1–2°C deviation in concrete temperature may create structural risks. Therefore, not only the use of ice but its precise and timely dosing is critical.
Industrial Integration and Durability
Modern ice weighing systems are compatible with SCADA infrastructures, remote monitoring platforms, and ERP systems. Project managers can track production parameters in real time, ensuring full transparency and compliance.
Systems can be customized for stationary batching plants, mobile concrete plants, or large infrastructure sites. With stainless steel construction, insulated hoppers, and robust industrial design, they are engineered for harsh environmental conditions and long service life.
In today’s concrete cooling industry, ice usage is no longer optional especially in hot climates and mass concrete applications. However, real efficiency and structural reliability are only achievable through precise ice weighing and controlled dosing.
Ice weighing systems establish a scientific and systematic approach to temperature control in concrete production. With their precision, automation compatibility, and sustainability advantages, they have become indispensable components of modern concrete batching operations.
